Brief introduction of CNC Router:

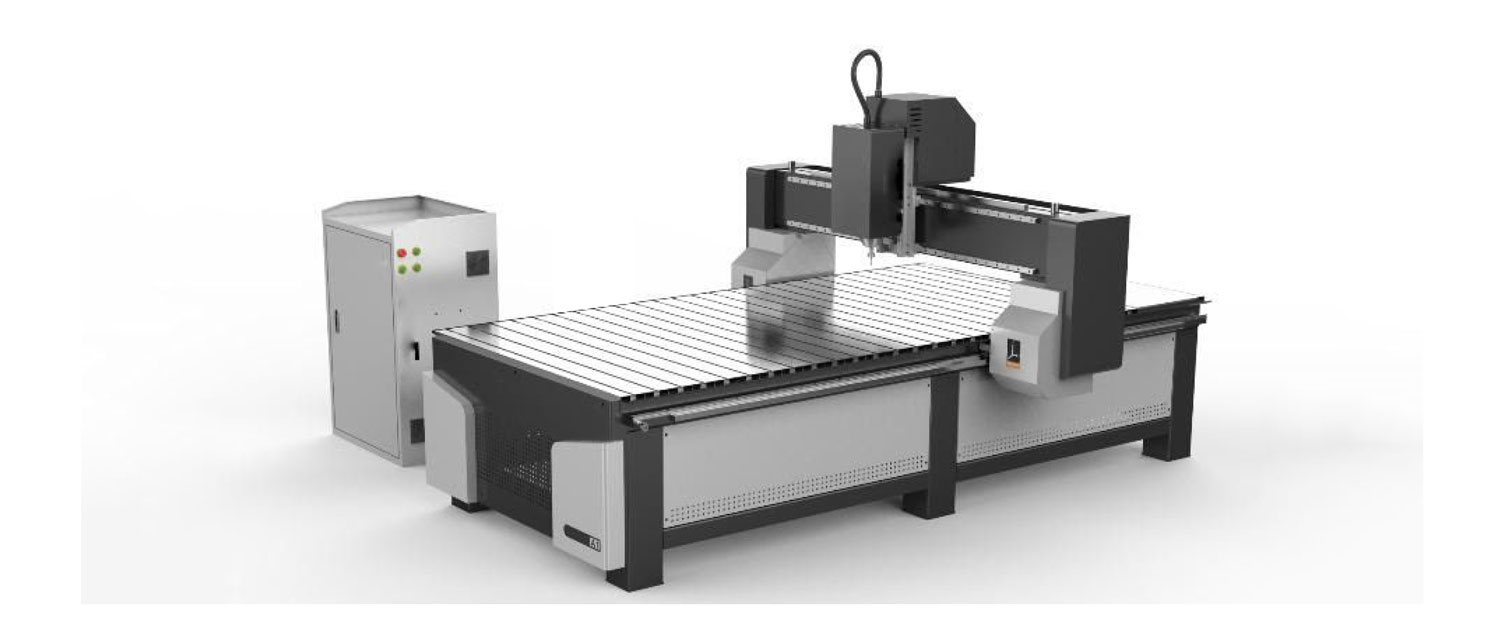

DH1325-A1 model Advertising Woodworking CNC Router is made of high thickness square tube welded bed, China famous brand square rail and high speeding Stepper driver. It is suitable for cutting and engraving on different materials such as MDF, acrylic, wood, PVC etc. And it is widely used in advertising and woodworking industries. It is an economic type CNC Router.
| Working Area: | 1300*2500MM |
| Travelling Position Accuracy | ±0.05mm |
| Repositioning Accuracy: | ±0.05mm |
| Max.Traveling speed: | 30000mm/min |
| Max.Working speed: | 25000mm/min |
| Spindle rotating speed: | 24000RPM |
| Working Voltage: | AC220V 1ph |
| Gross Weight | 800 kg |
| Measurement | L3.2 x W2.1 x H2.0 m |
| Name | Type | Unit | Brand | |
|---|---|---|---|---|
| Spindle | 220V/3.5kw Air Cooling | 1 | Italy | |
| Control system | 1 | DSP | ||
| Transmission | X.Yaxis | Gear rack | Helical Gear Rack | |
| Z axis | Ball screw | 1 | ||
| Guide rail | Square rail | 6 | Hiwin | |
| Drive system | Stepper motor with driver | |||
| Inverter | China | 1 | Best Inverter | |
| Table surface | T-slot | 1 | T-slot worktable | |
Applications:
- Advertising products industry: sign making, acrylic cutting and engraving.
- Wood industry: wood furniture making, 3d wood relief carving, wooden craftwork production Speakers, game consoles cabinets, computer tables, sewing machine table etc.
- Board processing industry: insulation piece, acrylic board, plastic chemical products, PCB, compact grade laminate, ABS, PP, PE and other cementitious mixtures’s milling process.
- Decoration industry: folding screen, wave plates, advertising boards, sign making and logo’s processing.
- Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
